High-resolution, non-destructive 3D imaging and measurement

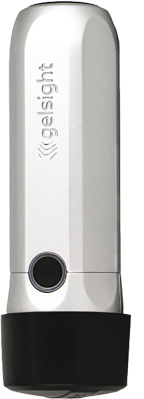

GelSight Mobile™ is a handheld instrument that precisely visualizes and measures the 3D topography of any surface, revealing microscopic structures in real time. It allows fast, easy measurement in situ and detailed analysis on the shop floor, without destruction or component disassembly.



Breakthrough Digital Touch technology

GelSight’s unique elastomeric sensor technology conforms to the topology of any surface, providing instant 3D visualization and measurement of surface structures at micron level.

gel 1gel 1



Improve productivity for arange of tasks

• Inspecting components forproduction and maintenance

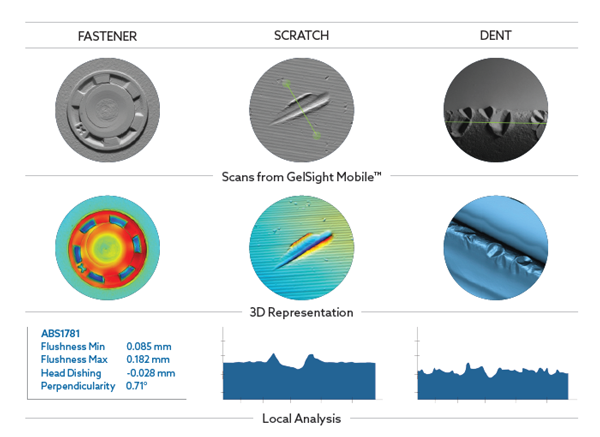

• Measuring scratches, dents,defects, fastener flushness,panel gaps, and more
• Analyzing surface texture
• Inspecting welds
• Forensic analysis/ballistics

Unmatched Advantages

GelSight Mobile™ provides advantages no other tactile sensing technology can match.

Group 235

Precision

Delivers repeatable, micron-level 3D data for surface features—more accurate than depth gauge or 2D profilometer.

Group 240

Speed

Provides results in seconds for fast decision-making. No time-consuming processes or disassembly of parts required.

Group 334

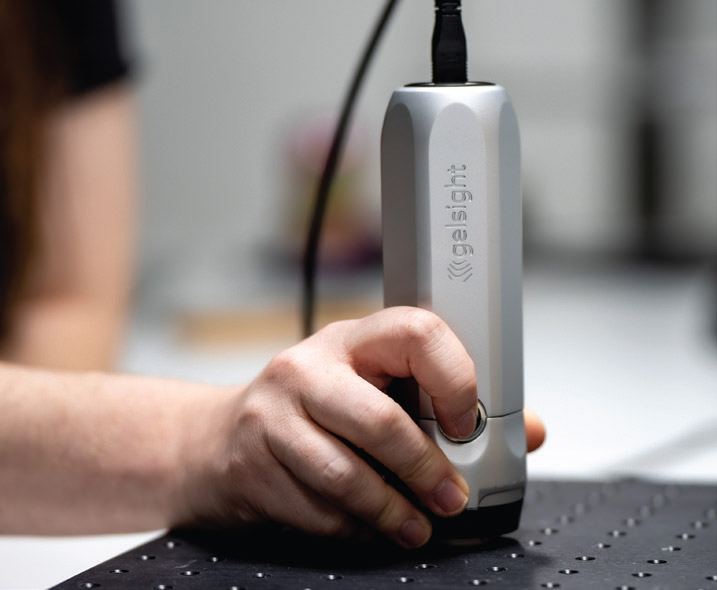

Portable

Ergonomic, easy-to-use, handheld device can be used anywhere—on the factory floor or out in the field.

icon versatile

Versatile

Measures any material—metal, glass, carbon fiber, textiles, skin—including reflective, transparent and translucent surfaces.

Group 334

Ease of Use

Intuitive touchscreen interface and automatic generation of reports.





How GelSight Mobile™ works



Elastomeric imaging

Elastomeric sensor conforms tothe surface topology, revealingdetailed features regardless oflighting conditions or reflectivity.Surface detail is displayed inreal time.

3D measurement

A 3D depth map is calculated fromimages of the surface, providingposition, depth and other derivedsurface measurements at a highresolution.







Specifications
GelSight Mobile™

Dimensions



5 cm x 15.5 cm

Weight



400 g

Resolution



5MP camera, 6.9 μm pixel size

Field of view



16.9 mm x 14.1 mm

Z Sensitivity



< 1 μm

Capture speed



100 ms

3D data speed



available in seconds

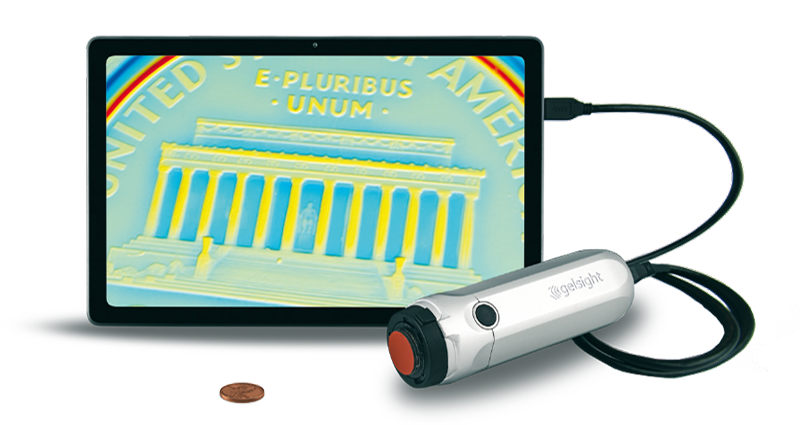

Interface



USB-C to tablet or laptop
